Construction Breaker Rentals and Sales

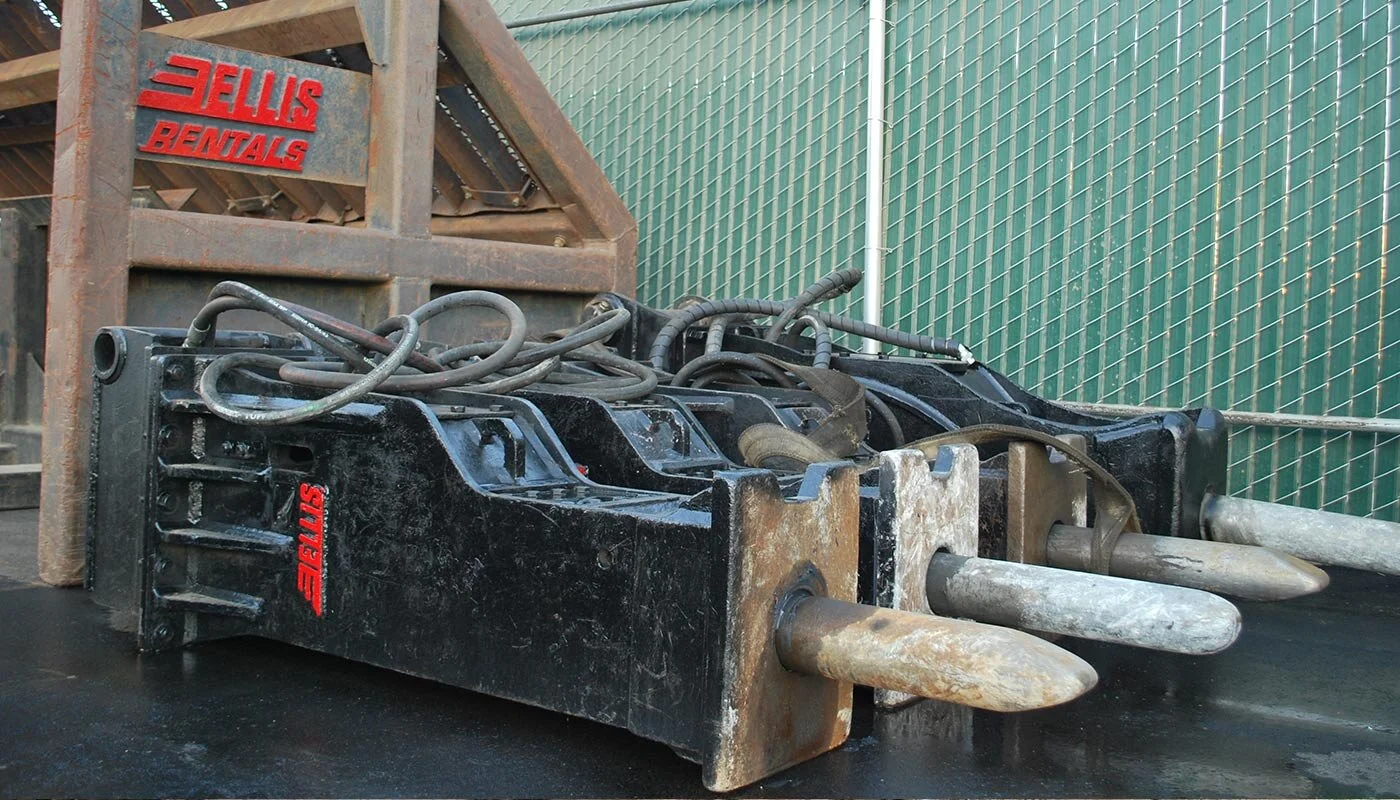

A breaker is a powerful percussion hammer fitted to an excavator for demolishing concrete structures or rocks. It is powered by an auxiliary hydraulic system from the excavator, which is fitted with a foot-operated valve for this purpose. Additionally, demolition crews employ the hoe ram for jobs too large for jack-hammering or areas where blasting is not possible due to safety or environmental issues.
Ellis offers Top Brand Hydraulic Breakers for rent and sell. We stock Kent Demolition Products, Striker Hydraulic Breaker Products and Stanley Hydraulics Products. Each of these brands provide durable products. In the 20 years of seeing these units being rented and sold to our various customers, little units have come back for repairs. Wither you need to break up a small patch of sidewalk to an old football stadium, Ellis has the breaker you need.
Skidsteer Breakers
Toku TNB Skidsteer Breaker
Toku’s TNB Breakers deliver exceptional; impact energy, long life and low operating costs. They minimize operator fatigue and environmental impact. These unique benefits are due to an innovative blend of simple yet efficient design and advanced “accumulator free” technology. With a complete range of 15 breakers based on the same design philosophy, TNB breakers are ideal for applications from construction and demolition to rental, recycling, mining and quarrying.
Impact energy class: 550foot pounds
Impact rate: 580 - 1060 beats per minute
Tool diameter: 2.5 inches
Working weight: 561 pounds
Oil flow: 6.6 - 12 gallons per minute
Operating pressure: 1422-2133 PSI
Hose I.D.: ½”
Gas Pressure: 114 PSI
Carrier Range: 2.4 - 4 tons
Mini Excavator Breaker
Toku TNB Breaker
Toku’s TNB Breakers deliver exceptional; impact energy, long life and low operating costs. They minimize operator fatigue and environmental impact. These unique benefits are due to an innovative blend of simple yet efficient design and advanced “accumulator free” technology. With a complete range of 15 breakers based on the same design philosophy, TNB breakers are ideal for applications from construction and demolition to rental, recycling, mining and quarrying.
Impact energy class: 550foot pounds
Impact rate: 580 - 1060 beats per minute
Tool diameter: 2.5 inches
Working weight: 561 pounds
Oil flow: 6.6 - 12 gallons per minute
Operating pressure: 1422-2133 PSI
Hose I.D.: ½”
Gas Pressure: 114 PSI
Carrier Range: 2.4 - 4 tons
Excavator Breakers
Excavator Breaker
Excavator Breaker Fits: Range 6 and Range 7 ESCO Couplers, Cat 318C / 320B / 325B /330B / 320D, Case CX160 / CX225 / CX240 / CX 280, Hitachi EX 150 / EX160 / EX 200 / EX 210 / EX 225, John Deere 160 / 180 / 200 / 225 / 270, Komatsu PC200 / 210 / 220 / 270 / 300 / 360, Volvo EC 210 / EC 240.
Weight Class: 4,000fp-5,000fp
Backhoe Breakers
TNB-6E–1.5K Hydraulic Breaker
Impact Energy Class: ft-lb (Nm) - 1500 (2034)
Impact Frequency: bpm - 550-1000
Working weight:
2 pc top mount type – lb (kg) - 992 (450)
Box bracket – lb (kg) 1257 (570)
Operating Pressure:
Psi 1,450-2,320
Mpa 10-16
Oil Flow:
Gpm 11.9 – 21.1
L/min 45-80
Chisel Diameter: Inch (mm) – 3.75 (95)
Hose Size: ¾ inch
Base Carrier: mt 6-11
Backhoe breaker fits: JD310 Pin-On, JD410 Pin-On, Cat 420 Pin-On, Case 580 Pin-On, 1/4 yd Wain-Roy
Weight Class: 1500fp
TNB-7E–2K Hydraulic Breaker
Impact Energy Class: ft/lb (Nm) - 2000 (2710)
Impact Frequency: bpm - 450-720
Working weight:
Box bracket – lb (kg) 2090 (950)
Operating Pressure:
Psi 2,030-2,610
Mpa 14-18
Oil Flow:
Gpm 21.1 – 31.7
L/min 80-120
Chisel Diameter: Inch (mm) – 4.13 (105)
Hose Size: ¾ inch
Base Carrier: mt 8-14
Backhoe Breaker Fits: 710 Pin-On, 1/2yd Wain-Roy
Weight Class: 2000fp
Pulverizers
DMC 300 Pulverizer
Operating Weight: LB (KG) – 5622 (2550)
Max Opening Width: IN (MM) – 36 (915)
Overall Length: IN (MM) – 92.6 (2351)
Crushing Force (end): TON – 73
Operating Pressure: PSI (KGF/CM2) – 4552 (320)
Oil Flow Rate: Minimum of 66.1 Gallons Per Minute / 250 Liters Per Minute
Excavator Class: 27-36 Tons
Fits: JD280 JD290 JD300 JD350 JD400 JD450, CAT 330 CAT 336 CAT 345
